Best Uses
- 3D object sketching
- Architecture massing ideas
- Game map and tile concept drawings
Print Setup

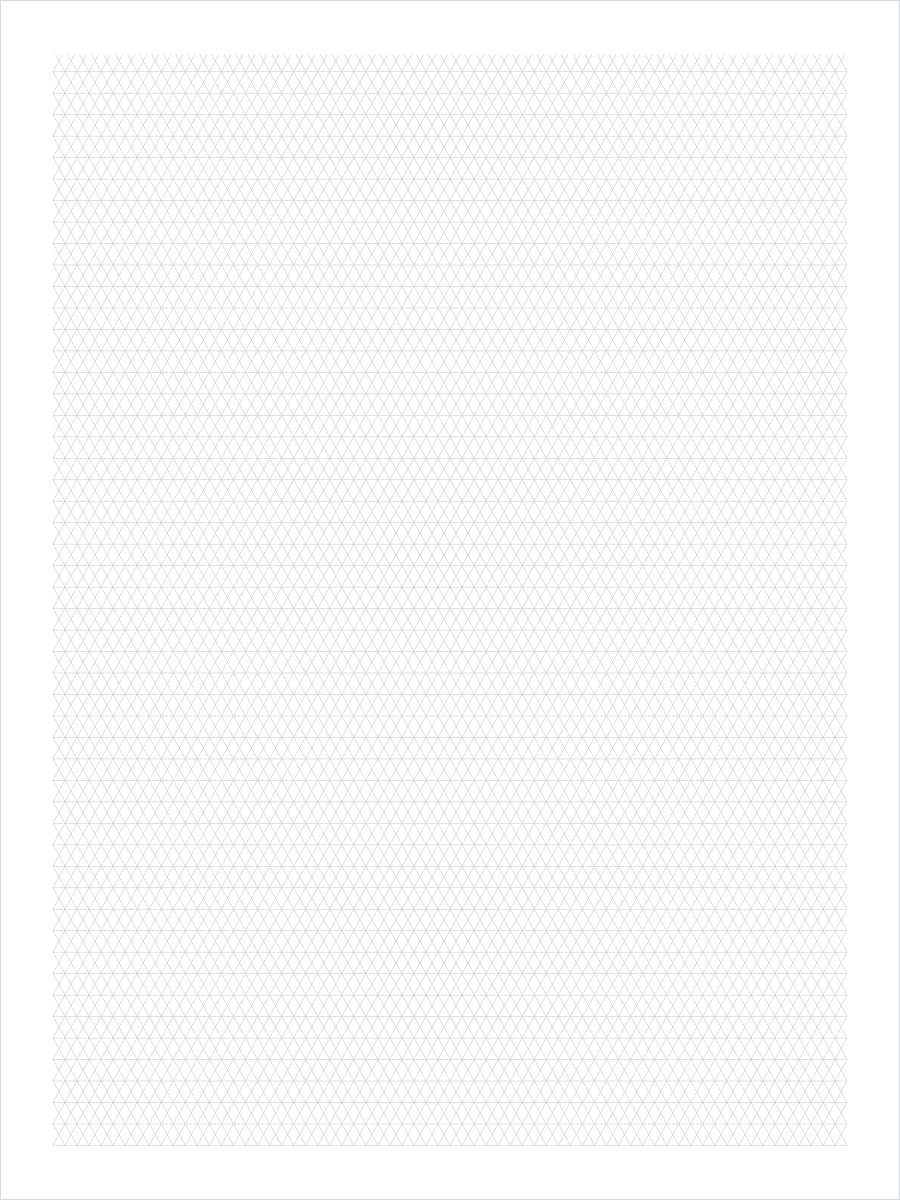

The default file is generated for LETTER paper in portrait
orientation. Print at actual size when spacing matters.
The linked PDF is a static file, so it can be downloaded, printed, and shared even if custom generation is unavailable.
How the isometric grid is built
Isometric paper is made of three sets of parallel lines. Two sets sit at 30 degrees above the horizontal, mirrored left and right, and together they cut the sheet into equilateral triangles. Every triangle has three 60 degree corners, so distances along any of the three directions stay on the same scale.
That equal scale is what makes the paper useful for 3D work. A cube drawn on isometric paper keeps its true edge length on all three axes, so you can measure a drawing with a ruler and read real proportions off it. Vertical edges of an object stay vertical on the page, while the two horizontal directions follow the 30 degree lines.
Isometric paper vs other drawing grids
A square grid only helps with flat, head-on views. The moment you rotate an object, a square grid gives you no guide for the receding edges, and you end up estimating angles by eye.
A perspective grid does the opposite: it converges toward one or more vanishing points, so parallel edges get closer together as they recede. That looks more like a photograph, but you can no longer measure the drawing, because the same edge length shrinks with distance.
Isometric paper sits between the two. There is no vanishing point and no foreshortening, so it trades photographic realism for measurability. That is why it is the default for exploded assembly diagrams, tile-based game maps, and quick architectural massing studies.
Printing without distorting the grid
Print at actual size, not "fit to page". Scaling the sheet changes the spacing between lines but not the angles, so the triangles stay equilateral while the measurements you take off the page stop matching the intended grid.
Light gray lines at the default weight stay visible under pencil but tend to disappear when the sheet is photocopied or scanned. If the drawing needs to survive a copier, switch the line weight to normal before generating the PDF.
